| MODEL NUMBER | AOI UCS-Q1i-WHT | AOI UCS-Q1i-BLK |

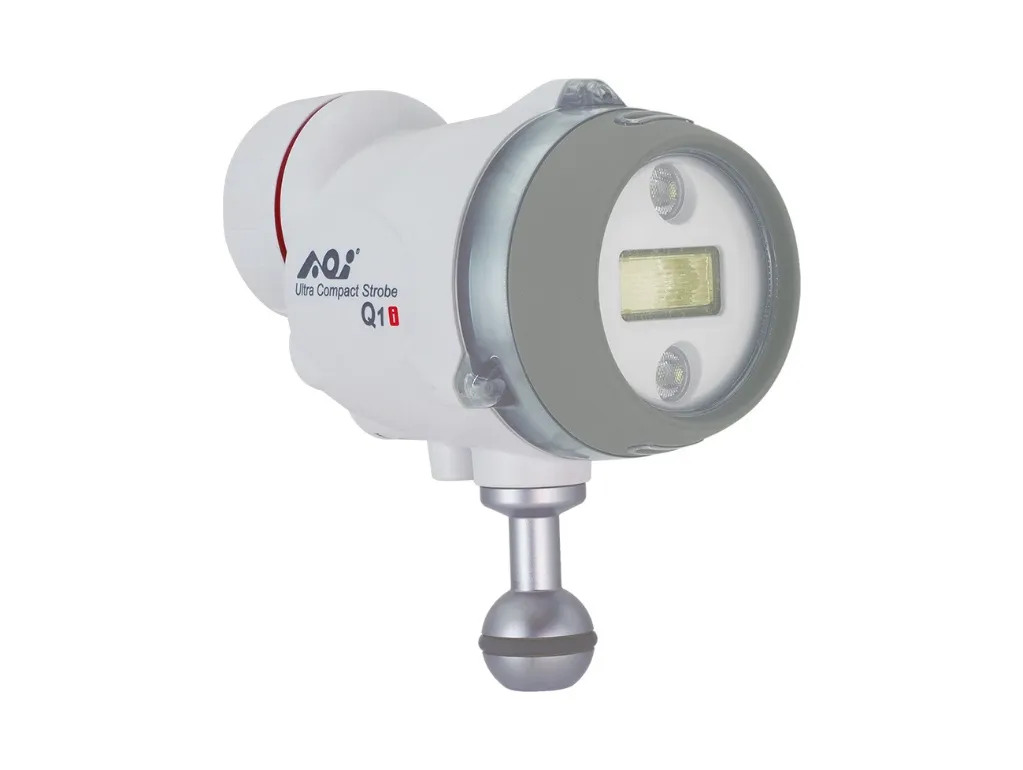

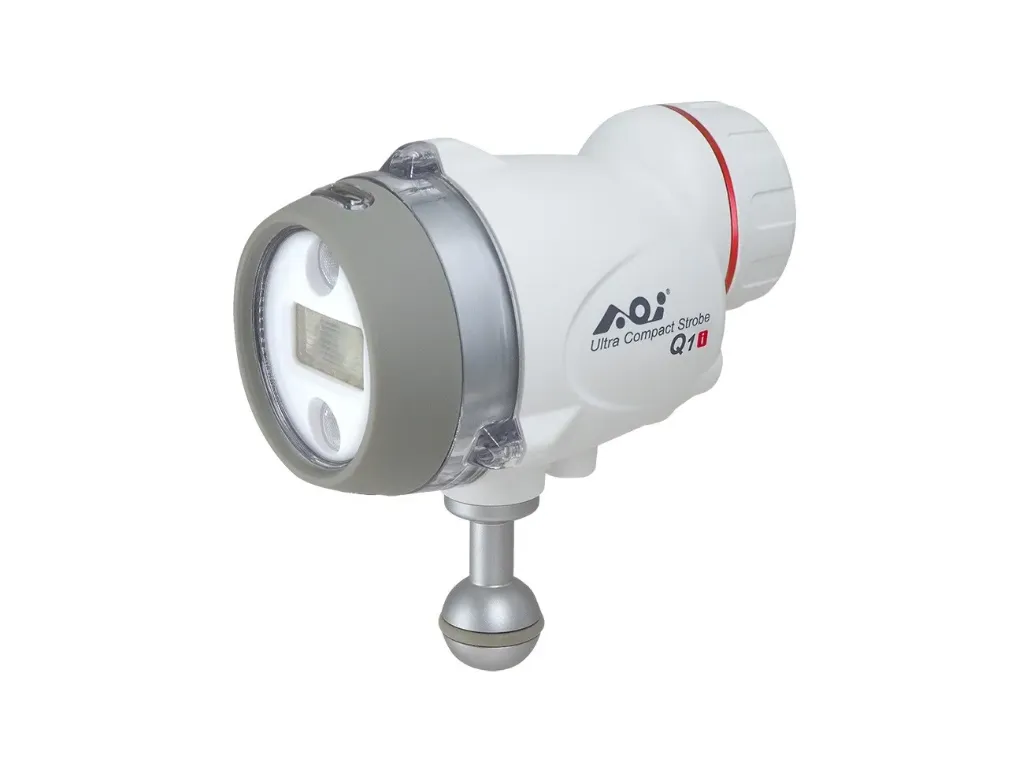

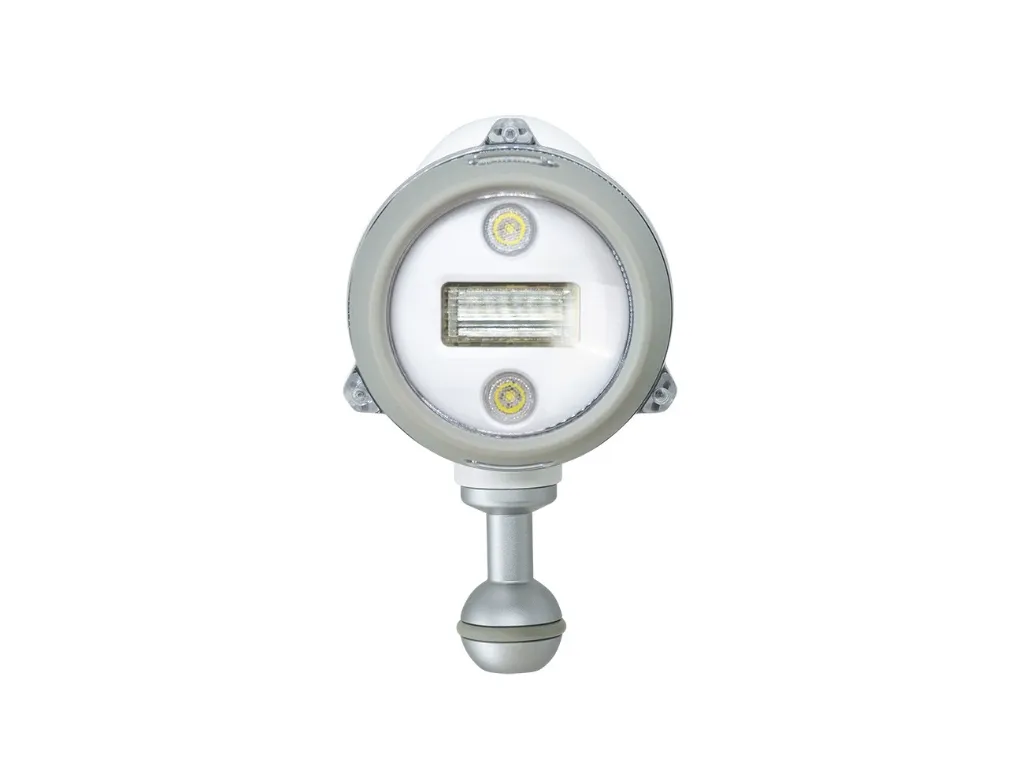

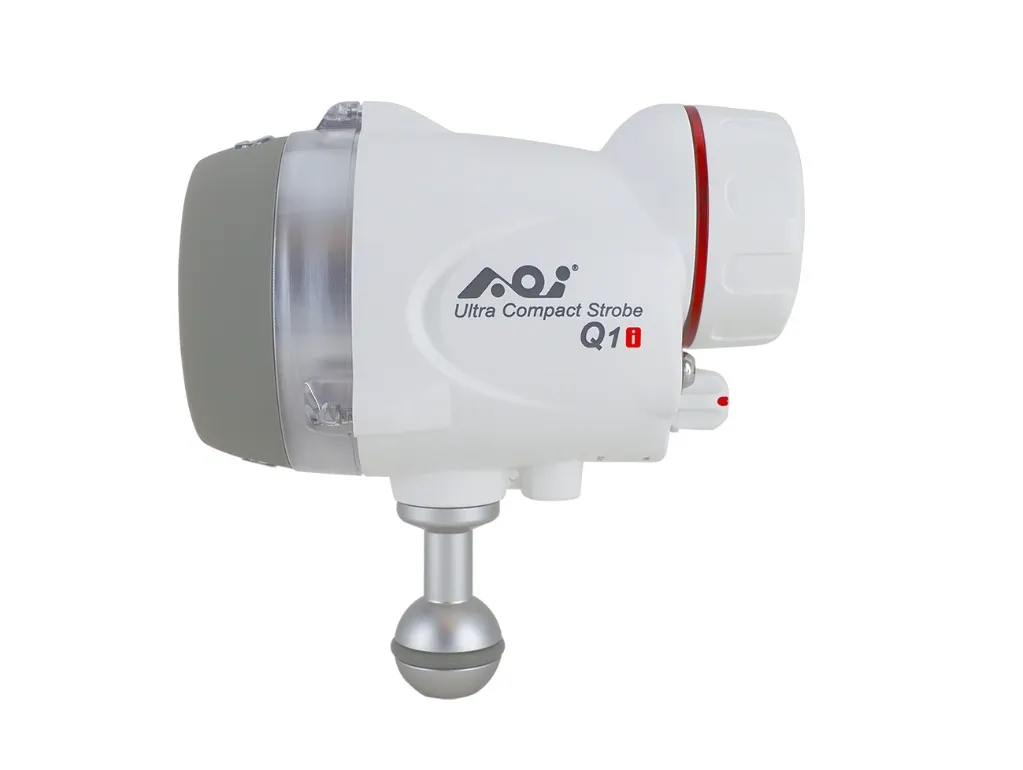

| DESCRIPTION | Ultra Compact Strobe- Q1i |
| MAIN BODY COLOR | White | Black |
| MAIN BODY MATERIAL | Polycarbonate + Glass Fiber |
| DEPTH RATING | 60 Meters |
| STROBE | Guide Number | G.N.= 22 |
| Color Temperature | 5,600K (5,000K with Diffusor) |
| Beam Angles | With Diffusor Horizontal- 85°, Vertical- 85° |
| Flash Recharge Time | 0.85 Second (Full Power) |
| Number of Flashes | 1,500 times (Using Flash Only, Full Power and with 3,100mAh Li-Ion Batteries) |
| Flash Sync. | By Fiber Optical Cable (Multi-cores Fiber Optical Cable is Recommended) |
| Pre-flashes Sync. | Pre-Flash Auto Learning / P re-Flash Cancellation |

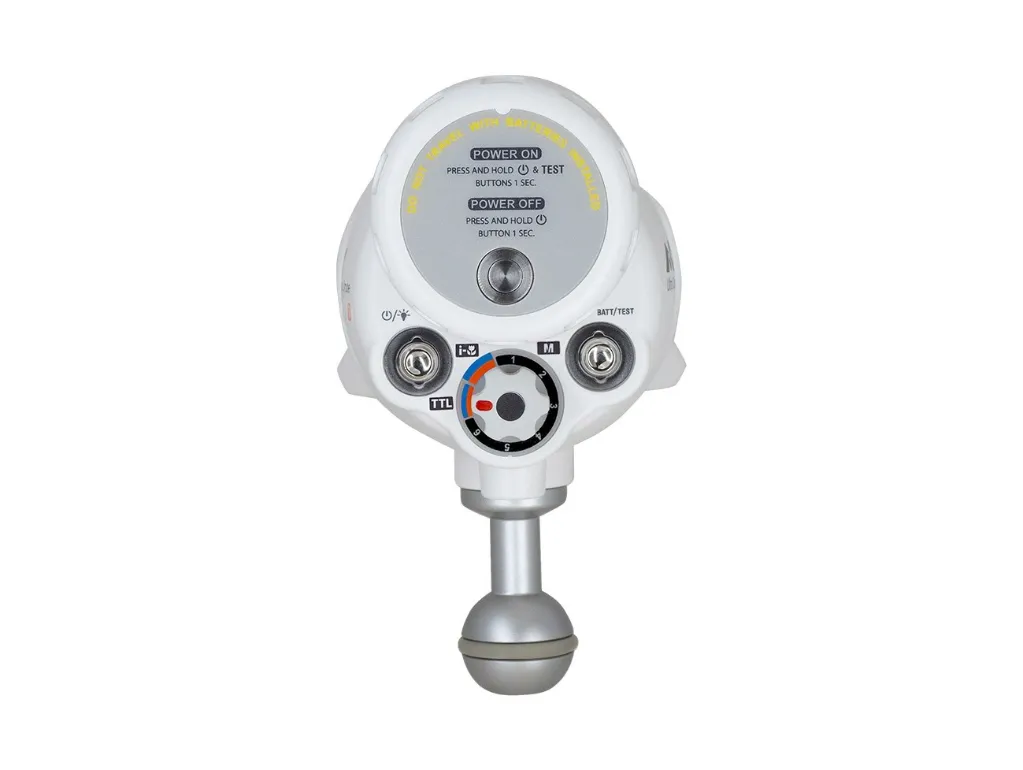

| Flash Modes | TTL Mode and i-Macro Mode | OMDS | RC FLASH (Group A, Channel 1) TTL AUTO, MANUAL,FP TTL AUTO, FP MANUAL
|
| SONY | TTL,HSS TTL |
| Manual Mode | 6 Steps Setting: 1/64, 1/32+0.5, 1/8, 1/4, 1/2 & FULL |
| Modelling Flash | 2 Seconds Flashing Duration |
| Flash Test Button | Yes |
| LED LIGHTS | Maximum Output | 700 Lumens |
| Power Control | 25%, 50%, 100% and OFF |
| Color Temp. | 5600K |
| Beam Angles | 45° |
| Burn Time | 130 Minutes (Using LED Only, Full Power and with 3,100mAh Li-Ion Batteries.) |
| BATTERY REQUIREMENTS | 18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included with the product) |
| Output Current | Minimum 5A |
| Battery Length | Minimum 69mm |
| STROBE MOUNTING | 1" Ball Mount Only (Non-replaceable) |
| DIMENSIONS | 125mm (L) x 77mm (W) x 131mm (H) |
| WEIGHT | On Land | Approx. 550g (Batteries included) |
| Underwater | Approx. 90g (Batteries included) |
| STANDARD ACCESSORIES | Strobe Diffusor for Q1 Series SD-01 |
| Control Knob Extension for Q1 Series CKE-01 |
| Spare O-ring set for Q1 Series SOR-01 |
| O-ring Remover ORR-02 |
| Silicone Grease (1.5g) |
| Battery Storage Case BSC-18650-2 (Rechargeable Battery is not included) |
