MODEL NUMBER
|
AOI UCS-Q1RC-WHT |
AOI UCS-Q1RC-BLK |
|
DESCRIPTION
|

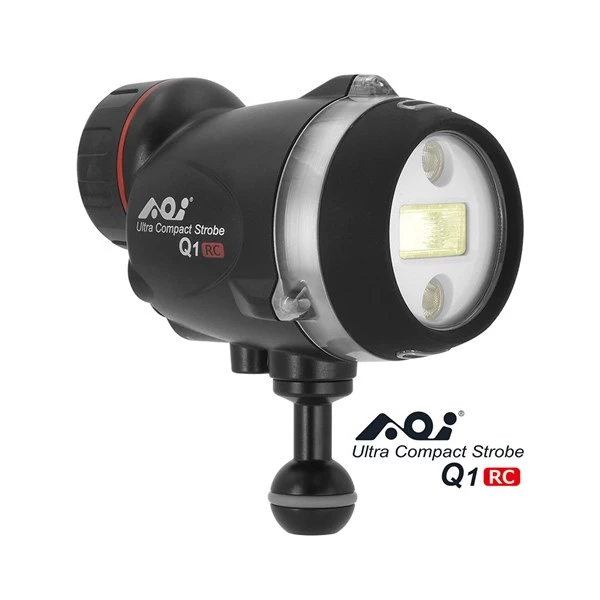

Underwater Ultra Compact Strobe |
|
MAIN BODY COLOR
|
White |
Black |
|
MAIN BODY MATERIAL
|
Polycarbonate + Glass Fiber |
|
DEPTH RATING
|
60 Meters |
| STROBE |
Guide Number
|
G.N.= 22 |
|
Color Temperature
|
5,600K (5,000K with Diffusor) |
|
Beam Angles
|
With Diffusor Horizontal- 85°, Vertical- 85° |
|
Flash Recharge Time
|
0.85 Second (Full Power) |
|
Number of Flashes
|
1,500 times (Using Flash Only, Full Power and with 3,100mAh Li-Ion Batteries) |
|
Flash Sync.
|
By Fiber Optical Cable (Multi-cores Fiber Optical Cable is Recommended) |
|
Pre-flashes Sync.
|
Auto Learning |
| Flash Modes |
RC Mode |
OMDS / RC FLASH (Group A, Channel 1) |
| TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL |
| i-Macro Mode |
TTL AUTO, MANUAL, Snooting (Group A, Channel 1) |
|
|
|
| Manual Mode |
6 Steps Setting: 1/64, 1/24, 1/8, 1/4, 1/2 & 1/1 |
|
Modelling Flash
|
2 Seconds Flashing Duration / Press |
|
Flash Test Button
|
Yes |
| LED LIGHTS |
Maximum Output |
700 Lumens |
| Power Control |
25%, 50%, 100% and OFF |
| Color Temp. |
5600K |
| Beam Angles |
45° |
| Burn Time |
130 Minutes (Using LED Only, Full Power and with 3,100mAh Li-Ion Batteries.) |
| BATTERY REQUIREMENTS |
18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included with the product) |
| Output Current |
Minimum 5A |
| Battery Length |
Minimum 68.5mm |
| STROBE MOUNTING |
1" Ball Mount Only (Non-replaceable) |
| DIMENSIONS |
125mm (L) x 77mm (W) x 131mm (H) |
| WEIGHT |
On Land |
Approx. 550g (Batteries included) |
| Underwater |
Approx. 90g (Batteries included) |
| STANDARD ACCESSORIES |
Strobe Diffusor for Q1 Series SD-01 |
| Control Knob Extension for Q1 Series CKE-01 |
| Spare O-ring set for Q1 Series SOR-01 |
| O-ring Remover ORR-01 |
| Silicone Grease (5g) SIGR-5 |
Battery Storage Case BSC-18650-2 (Rechargeable Battery is not included)
|
