| MODEL | AOI UAL-05 |

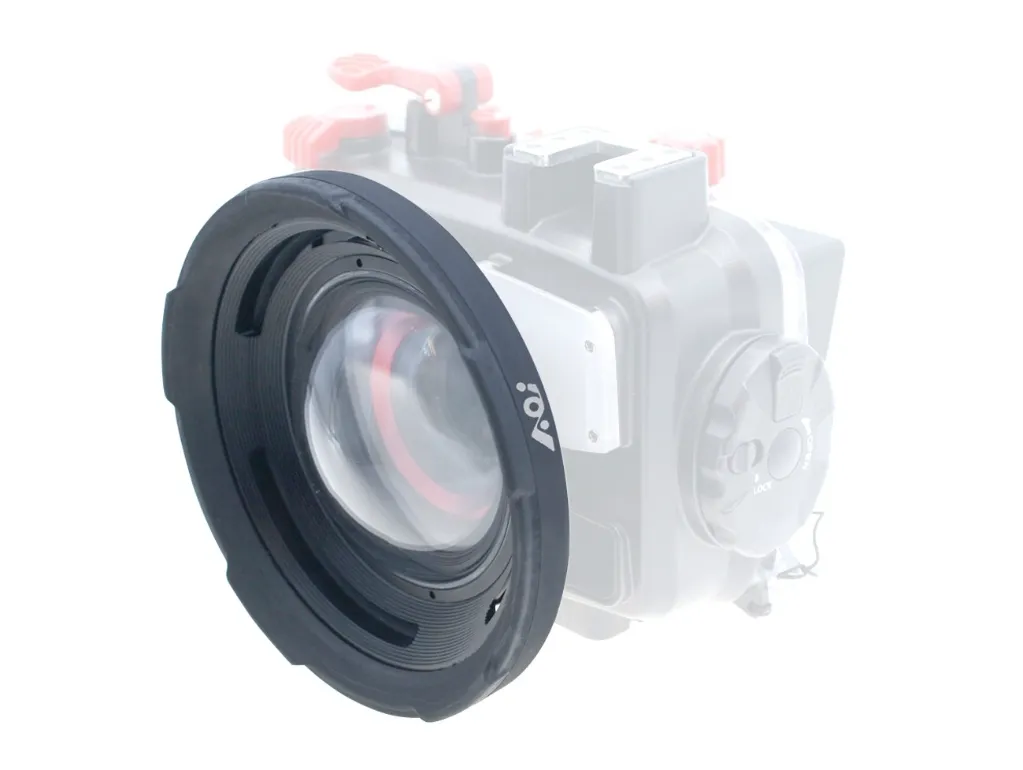

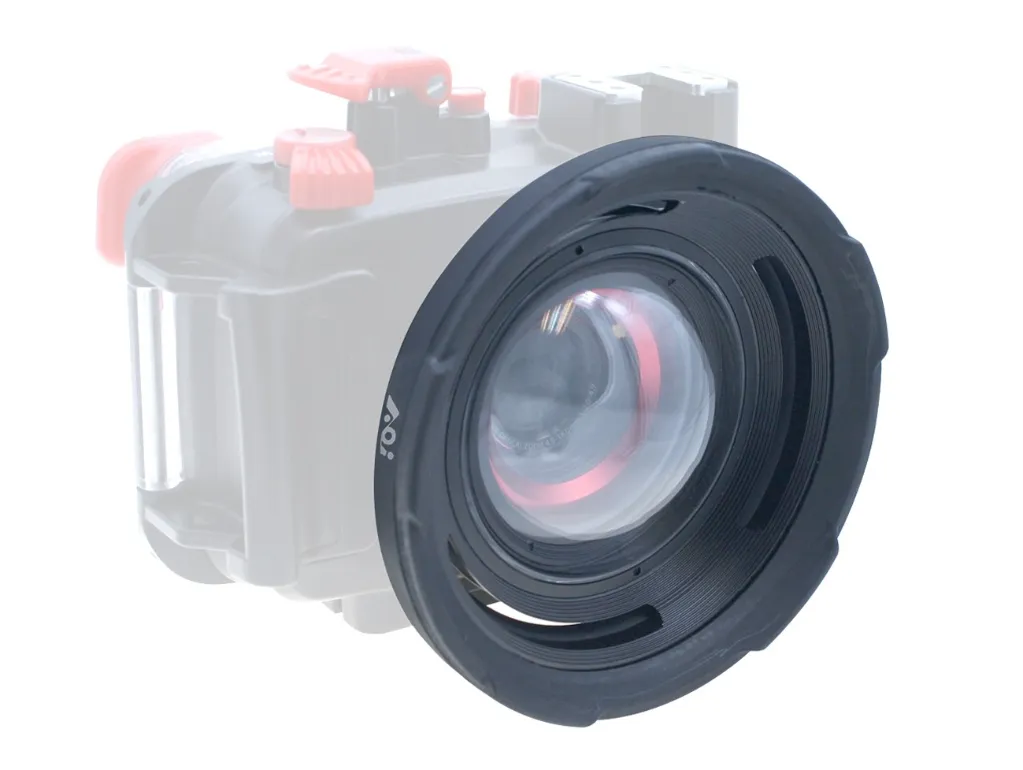

| DESCRIPTION | Underwater 0.75X Wide Angle Air Lens |
| LENS CONSTRUCTION | 2 Groups, 2 Elements |
| WORKING DEPTH | 50M / 165Ft |
UNDERWATER FOV / MAGNIFICATION
(WITH OLYMPUS TG-4/5 CAMERA) | 81 Degrees / 0.75X |
| MOUNTING | M52 Thread Mount |
| LENS MATERIAL | Polycarbonate Dome Lens with Hard Coating
and Optical Glass Lens with Multi-layers AR Coating |
| BARREL/HOOD MATERIAL | Black Anodized Aluminum Alloy / EPDM |
| DIMENSIONS | 120mm (D) X34mm (H) |
| WEIGHT | 160 g On-land
20 g Under-water |
| ACCESSORY | ABS Rear Port Cap (LRC-01), Lens Pouch, Secure Lanyard |
*Specifications and Appearances are subjecte to change without prior notice.
